Lenovo ThinkReality VRX Headset | Knoxlabs XR

Lenovo ThinkReality VRX Headset

by Lenovo
$ 1,299.00 - $ 1,299.00
$ 1,299.00
$ 1,299.00 - $ 1,299.00
$ 1,299.00
Return Policy
Shipping and delivery
Ships within 10-15 days
Overview

Engineered exclusively for enterprise

  • Slim, comfortable all-in-one VRX headsets
  • Powered by the Qualcomm® Snapdragon™ XR2+ Gen 1 chipset
  • Ideal for soft skills training and simulation with 3DoF & 6DoF capabilities
  • Full-color, high-resolution pass-through imaging for Mixed Reality applications
  • Full suite of end-to-end services with global support and service
Features

Powering your virtual workplace, anyplace
Powered by a Qualcomm® Snapdragon™ XR2+ Gen 1 chipset, the future-ready ThinkReality VRX is your on-ramp to the enterprise metaverse. It delivers immersive experiences that enable moving and manipulating virtual objects in simulated high-risk environments for servicing and technical skills training. Collaboration and innovation are constrained less than ever by physical location, and ThinkReality VRX headsets are backed by Lenovo’s global support and service.

Experience true comfort and full performance

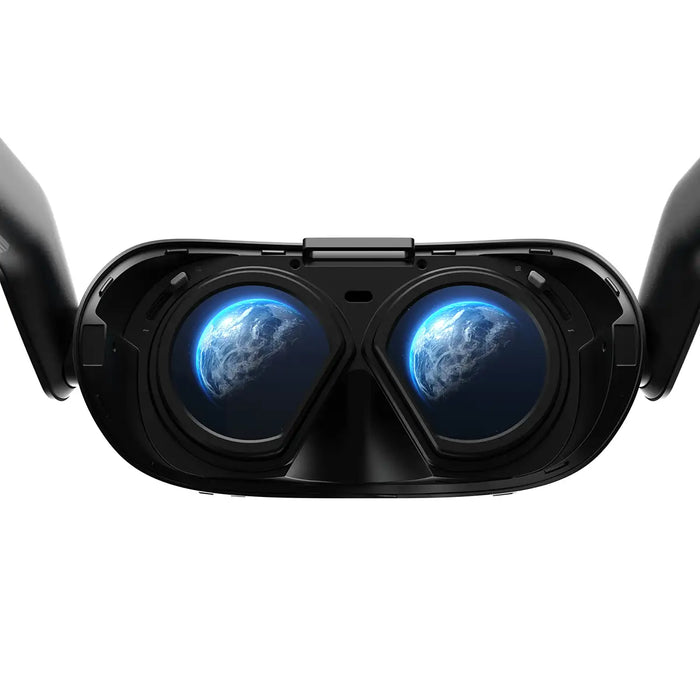

Our ThinkReality VRX headset was designed with comfort as a core requirement. The result is a slimmer profile than previous generations due to advanced optical engineering featuring new pancake lenses that minimize volume and weight. Sizing is adjustable, and the rear battery acts as a counterweight to give the headset a light and balanced feel on your head. Making it comfortable for extended VR sessions anywhere VR training, collaboration, or design needs to happen.

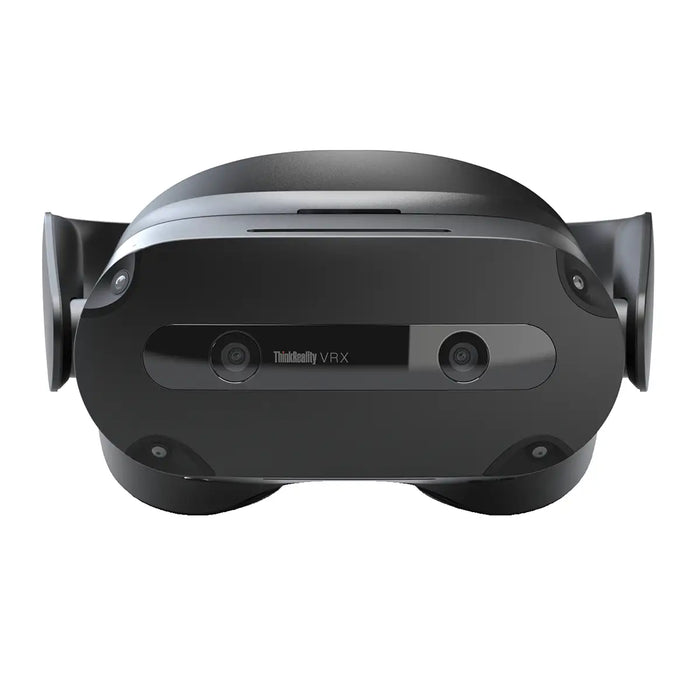

High-resolution display with 4-camera 6DoF optical tracking
The ThinkReality VRX display features a crisp 2280 x 2280 per eye. Four front-mounted cameras provide 6DoF tracking, allowing you to move and manipulate virtual objects, bringing a new dimension to immersive training, collaboration, 3D design, and engineering. Pass-through technology enables MR applications, so you can superimpose 3D graphics on top of real-world images to get more done, all with a single XR device. Two full-color, high-resolution pass-through cameras give users a seamless experience.

Specs

Processor: Snapdragon® XR2+ Gen 1
OS: Android 12
RAM: 12 GB
Storage: 128 GB
Optics: Pancake lens
Resolution: 2280 x 2280 per eye
FOV: 95°
Refresh rate: 70/90Hz
Pass-through: 2-camera full color HD pass-through
Tracking: 4-camera 6DoF optical tracking
Audio: Integrated speakers, dual microphone, 3.5mm jack
Controller type: 6DoF controllers, hand tracking, headset buttons
Battery: 6900 mAh USB-C charging, rear placement
PC: Wi-Fi streaming/wired connection via USB-C streaming
Materials: Fully wipeable surfaces

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

VIVE Focus Vision Full Specifications

Display
  • Type: Dual LCD panels
  • Resolution: 2448 x 2448 pixels per eye (4896 x 2448 combined)
  • Refresh Rate: 90 Hz
  • Field of View (FOV): Up to 120°
Optics & Tracking
  • Auto-IPD Adjustment: Automatic interpupillary distance (57mm to 72mm)
  • Eye Tracking: 120 Hz gaze data output frequency, 0.5° to 1.1° accuracy, 5-point calibration, heat mapping & foveated rendering
  • Hand Tracking: 26-point hand tracking with infrared floodlight, low-light support
  • Inside-Out Tracking: 4 tracking cameras, sub-millimeter accuracy, no external sensors
  • Mixed Reality Passthrough: Stereo color passthrough, depth sensor for scene understanding
Processor Qualcomm® Snapdragon™ XR2 (Gen 1)
Memory & Storage
  • RAM: 12GB LPDDR5
  • Internal Storage: 128GB ROM
  • Expandable Storage: Up to 2TB via microSD card slot
Battery
  • Hot-swappable, removable battery
  • Battery Life: Up to 2 hours of continuous use
  • Charging: 50% charge in 30 minutes with 30W adapter
  • Hot-Swap Feature: Built-in backup battery for 20 minutes of power during swap
Audio
  • Speakers: Dual-driver, open-back with 3D spatial audio
  • Audio Jack: 3.5mm headphone jack
  • Microphones: Dual microphones with noise and echo cancellation
Connectivity
  • Wi-Fi 6, Wi-Fi 6E (2.4GHz, 5GHz, 6GHz)
  • Bluetooth 5.2 with BLE
  • Ports: 1 x USB 3.2 Gen 1 Type-C, 1 x USB-C with DisplayPort support
Sensors
  • 4 tracking cameras
  • 2 high-resolution passthrough cameras
  • Depth sensor, eye-tracking cameras, G-sensor, gyroscope, proximity sensor, infrared floodlight
Ergonomics
  • Weight: 615g
  • Materials: Magnesium alloy frame, reinforced for durability
  • Cushions: Magnetically attached, swappable face and rear cushions
  • Adjustment Mechanism: Rear dial, quick-release button, top strap
  • Glasses-Friendly: 150mm wide facial interface
  • Cooling System: Active cooling with 30% more air intake
Controllers
  • 6DoF inside-out tracking
  • Sensors: Hall sensors, capacitive sensors, G-sensor, gyroscope
  • Inputs: Grip button, analog trigger, joystick, A/B and X/Y buttons, system/menu buttons
  • Battery Life: Up to 15 hours (USB-C charging)
Compatible Platforms
  • VIVEport Platform: Access to over 1000 VR apps
  • PC VR Support: Compatible with PC VR via DisplayPort
  • Compatible Accessories: VIVE Wrist Trackers, VIVE Face Tracker, expandable storage via microSD
  • VIVERSE: Cross-platform collaboration (requires additional software)
Supported Use Cases
  • Play Area Size: Supports room-scale, seated, and standing VR
  • Room-Scale Tracking: Up to 10 x 10 meters
In the Box
  • VIVE Focus Vision Headset
  • Face Cushion & Rear Cushion
  • Controllers (Left and Right)
  • Hot-Swappable Battery
  • Top Strap
  • USB-C Cable
  • 30W AC Adapter
  • Splitter Cable for Charging
  • Lens Cleaning Cloth
  • Quick-Start Guide (QR Code)
  • Safety Guide
  • Warranty Card
  • Size Reference Card (for eyeglasses)
PC VR Minimum Requirements
  • Processor: Intel® Core™ i5-4590 or AMD Ryzen™ 5 1500X or better
  • GPU: NVIDIA GTX 1060 6GB or AMD Radeon RX 580 or better
  • Memory: 8GB RAM or more
  • USB Ports: 1 x USB 3.0
  • Operating System: Windows® 10 or 11
  • Ethernet Connection: Required for Wi-Fi streaming via PC
  • USB Cable: USB 3.0 Type-C recommended
  • Wireless Router: Wi-Fi 802.11ac or Wi-Fi 6/6E
VIVE Wired Streaming Kit for VIVE Focus Vision | DisplayPort mode compatible

VIVE Wired Streaming Kit for VIVE Focus Vision | DisplayPort mode compatible

Pre-order
$ 149.00 - $ 149.00
$ 149.00
$ 149.00 - $ 149.00
$ 149.00

Upgrade PC VR with the VIVE Wired Streaming Kit for seamless DisplayPort mode compatibility on the VIVE Focus Vision. Experience sharper visuals, reduced latency, and improved performance by connecting your headset directly to a PC. Ideal for high-fidelity gaming and immersive experiences.

  • Full 5K resolution support for stunning clarity
  • Low-latency connection for smooth, responsive gameplay
  • Easy setup for seamless switching between standalone and PC VR
