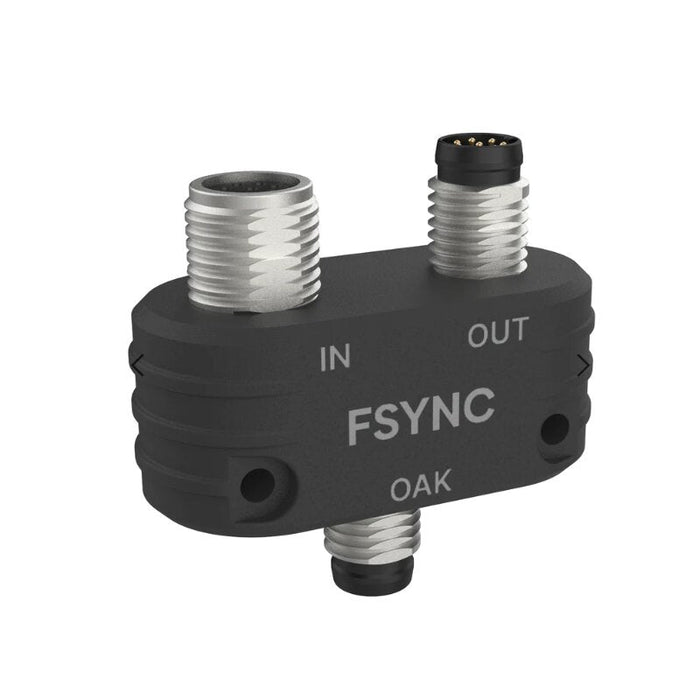

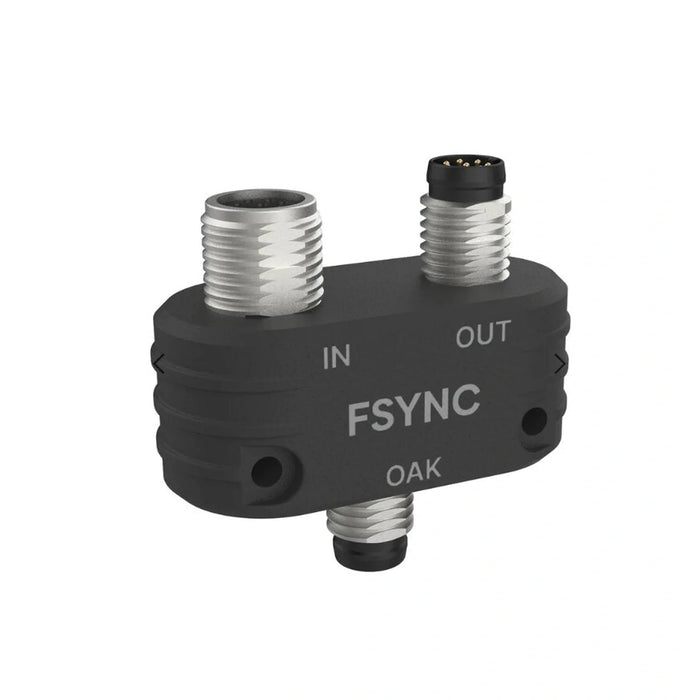

Hardware frame sync for OAK cameras. Every device on the chain begins sensor exposure at the same instant — Luxonis documents FSYNC precision below 10 microseconds across sensors, which is the difference between a clean multi-view dataset and one with motion skew baked in.
Specifications
- Hardware-synchronises multiple OAK cameras via the M8 auxiliary connector
- All devices begin sensor exposure simultaneously each frame
- Documented FSYNC precision under 10 microseconds across sensors
- Supports OAK-D S2 PoE, OAK-D W PoE, OAK-D Pro PoE, OAK-D Pro W PoE and OAK-D SR PoE
- Supports OAK4-S, OAK4-D and OAK4-CS (up to 3 devices at present)
- SKU Y8-Adapter
