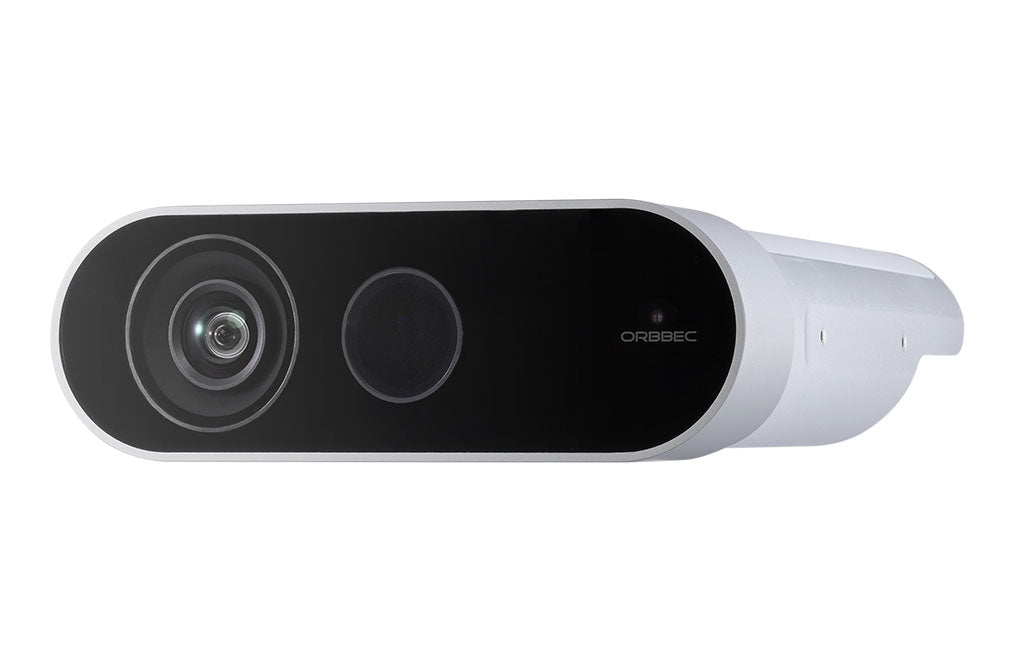

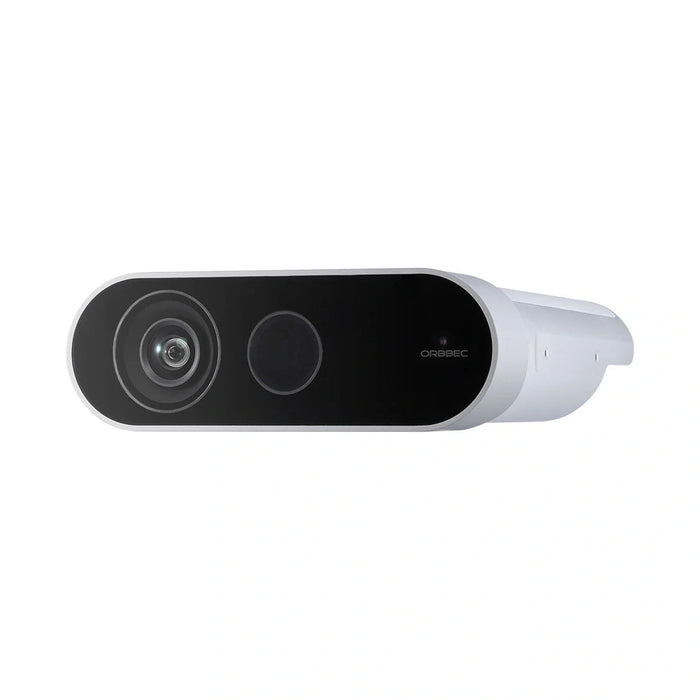

A time-of-flight depth camera with onboard Jetson Nano processing and Power-over-Ethernet. PoE plus a hardware trigger is what makes an eight-camera synchronised rig practical — one switch, one cable per camera, and every view exposing together.
Specifications
- ToF depth at up to 1024 × 1024 @ 15 fps (WFOV); 640 × 576 @ 30 fps (NFOV)
- 4K RGB at 3840 × 2160 @ 25 fps
- 0.25-5.46 m depth range, 120° wide field of view
- Onboard NVIDIA Jetson Nano processing
- USB 3.0 Type-C and Ethernet with PoE+
- Hardware sync trigger for multi-sensor networks
- Built-in IMU; ~13 W average power; 560 g
Pair with the Sync Hub Pro for a synchronised multi-view capture rig.
