Varjo XR-4 Series - Focal Edition

Varjo XR-4 Series - Focal Edition

by Varjo
$ 9,990.00 - $ 15,480.00
$ 9,990.00
$ 9,990.00 - $ 15,480.00
$ 9,990.00
Series: Focal Edition
Tracking with: Inside-out
Support: No Maintenance Service
Return Policy
Shipping and delivery
Ships within 10-15 days
Overview

The Varjo XR-4 Focal Edition elevates the standard set by the XR-4 Fixed Focus Edition, incorporating an advanced gaze-driven autofocus camera system. This system closely mimics human eye behavior, delivering an acuity essential for mission-critical tasks. With an unprecedented 51 pixels per degree, it offers a visual experience akin to human vision, perfectly computerized. The Focal Edition is particularly optimized for training and simulation, focusing on physical components and environments like cockpit training and remote medical procedures. This makes it an ideal solution for demanding professional use cases requiring detailed interaction with both virtual and physical elements.

Fixed Focus Pass through Cameras, Inside Out Positional Tracking, comes with (2) hand controllers, no subscription required, but does need to be able to connect to the internet
Use Cases: When the focus is on the virtual content (and the ability to see it in the real world).

Please note: this product can only be sold to an organization/business, a valid EIN/TAX ID number is required.

A valid Varjo VR subscription is required to use the device
Every XR-4 user must have a Varjo account and a valid VR subscription. Read more here.

Features
  • Enhanced Visual Fidelity: Includes all features of the XR-4 Fixed Focus, such as 4K by 4K displays, with the added benefit of gaze-driven autofocus for sharper, more precise visuals.
  • Optimized Optics for Simulation: The full-dome aspheric lenses provide a massive 120°x105° field of view, offering unparalleled clarity for training and simulation purposes.
  • Advanced Sensor Fusion: Combines 300 kpix LiDAR with 200 Hz eye tracking and new ambient light reconstruction cameras, ensuring a highly responsive and accurate XR environment.
  • Professional Functionality: Ready for deployment with inside-out tracking and ergonomically designed Varjo Controllers.
  • Collaborative Features: Equipped with DTS 3D spatial audio and dual noise-cancelling microphones, enhancing the collaborative experience in professional settings.
Technical Specifications
  • Display & Resolution: Dual mini-LED displays, 3840 x 3744 resolution, 200 nits brightness, 98% sRGB / 96% DCI-P3 color gamut.
  • Field of View: 120° x 105°.
  • Refresh Rate: 90 Hz.
  • Mixed Reality: Gaze-based autofocus with dual 20-megapixel passthrough cameras at 51 PPD.
  • XR Depth: 300 KPIX LiDAR with 7m range.
  • Eye Tracking: 200 Hz with one degree accuracy.

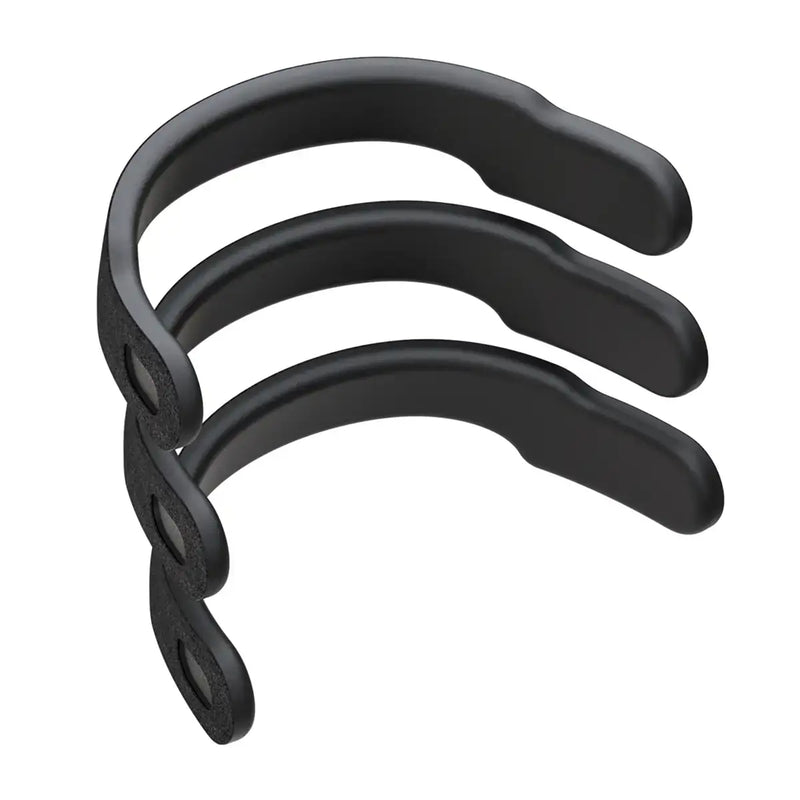

  • Comfort & Wearability: Zero gravity comfort fit, replaceable cushions, automatic IPD adjustment.
  • Weight: 665 g + headband 356 g.
  • Tracking: Inside-out, with optional outside-in for SteamVR™ and hand tracking.
  • Audio: Integrated spatial audio speakers, noise-cancelling microphones, 3.5 mm audio jack.

System Requirements:

  • Processor: 8-core CPU (e.g., 12th Gen Intel Core i7-12700K, 4th Gen Intel Xeon w3-2435, AMD Ryzen 7 2700X).
  • Graphics Card (GPU): NVIDIA RTX A5000, Quadro RTX 6000, GeForce RTX 4070, 3080, 2080 Ti.
  • Memory (RAM): 32 GB.
  • Storage Space: 2 GB.
  • Connectivity: 1 x DisplayPort 1.4, 1 x USB-A 3.0/3.1, 1 x 10 Gbps USB-C.
  • Operating System: Windows 10 (64-bit) or Windows 11.
In the Box
  • Varjo XR-4 Focal Edition mixed reality headset.

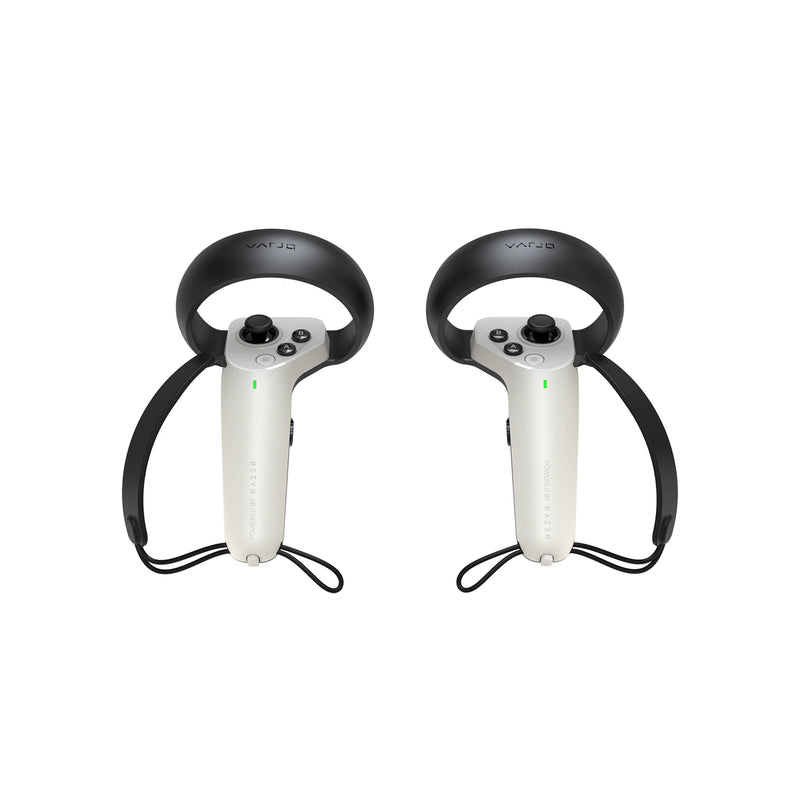

  • 2 Varjo Controllers.

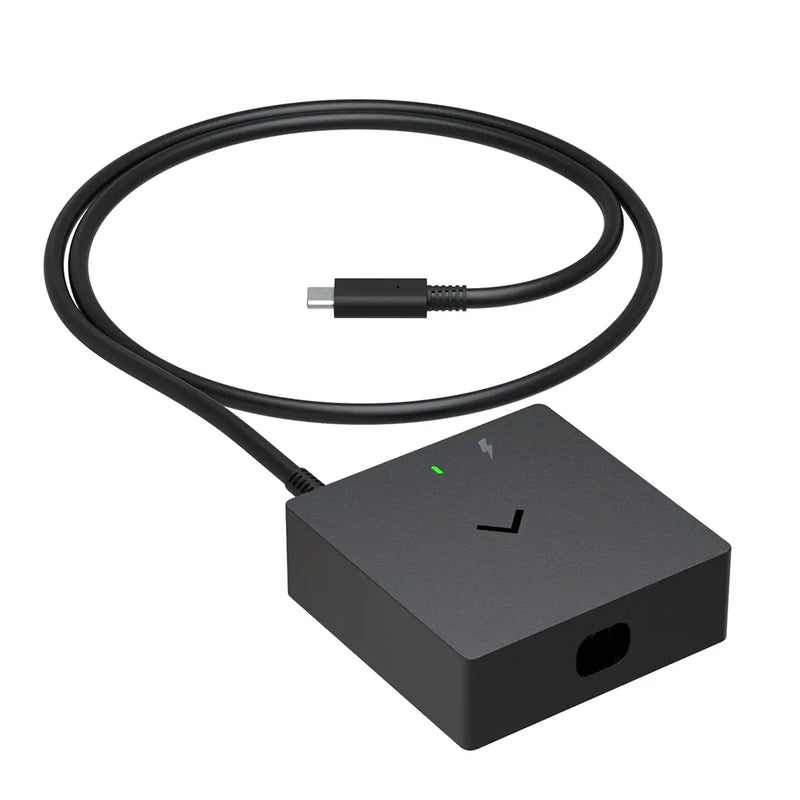

  • Headset adapter.

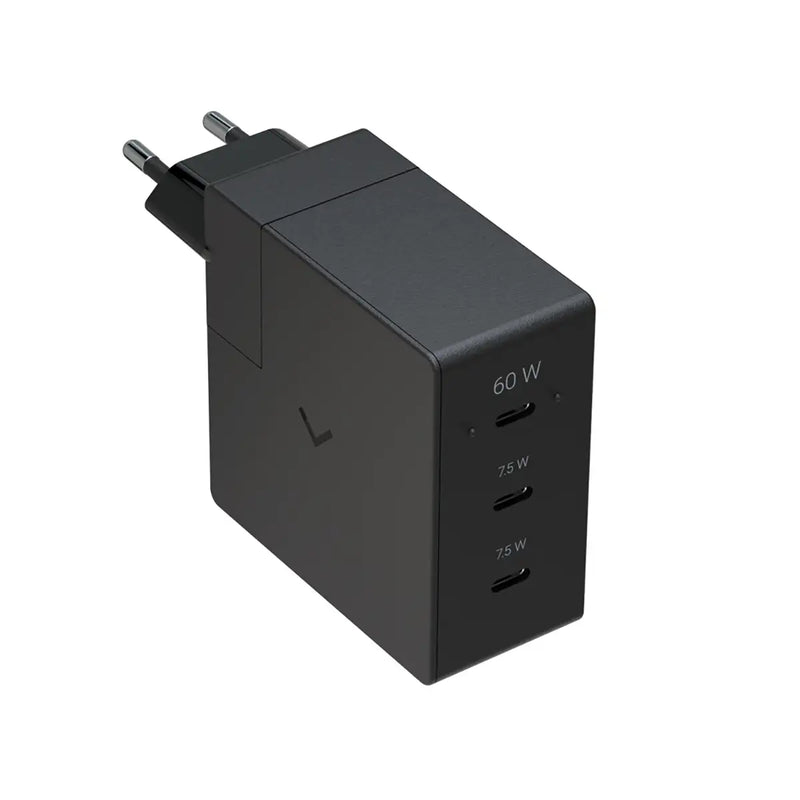

  • 3-port charger.
  • 5 power plugs (EU, UK, US, AUS, KOR).

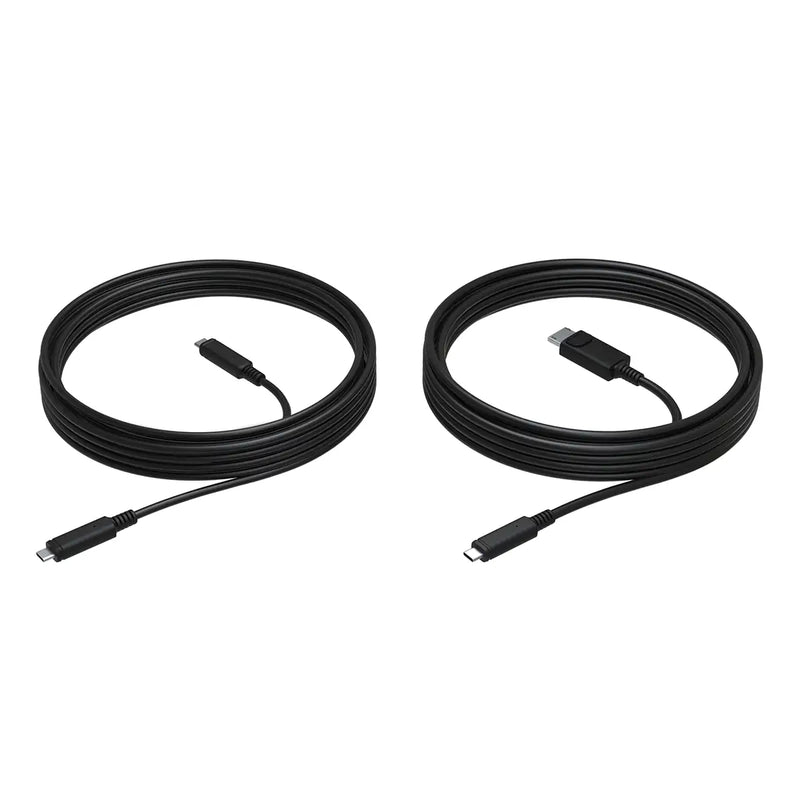

  • Data cable (USB-C connector, 5m).
  • Display cable (DisplayPort connector, 5m).
  • 3 charging cables (USB-C connector, 1.5m).
Varjo XR-4 Focal Edition Variants

  • Base:

    • Core XR-4 Focal experience without additional subscriptions.
    • Ideal for demanding professional mixed reality applications.
    • Includes gaze-driven autofocus and all fundamental Focal Edition features.

  • Enterprise Pro:

    • Enhanced with the Enterprise Pro subscription for additional support and services.
    • Ideal for enterprises requiring extensive technical support and specialized services.

  • Maintenance Service 1 Year:

    • Offers a one-year maintenance service to ensure optimal performance.
    • Suitable for long-term reliability and consistent device performance.

  • SteamVR Outside-in Tracking:

    • Equipped with SteamVR tracking for heightened accuracy in complex simulation environments.
    • Ideal for scenarios where precision tracking is crucial.
What is Outside-in SteamVR Tracking?

Outside-in SteamVR Tracking uses external sensors to track the headset's position and orientation, providing enhanced precision and spatial awareness. It's an optional add-on for the XR-4 Fixed Focus Edition, ideal for environments where the utmost tracking accuracy is required. This feature complements the headset's internal inside-out tracking, offering a more versatile and comprehensive tracking solution for various professional mixed reality applications.

FAQ

Do I need to use external tracking with the XR-4 Fixed Focus?
External tracking is recommended for extremely precise tracking needs, such as in a cockpit. If this precision is required, you should opt for the variant with Steam tracking.

Can the XR-4 Fixed Focus operate without internet connectivity?
Yes, for no internet connectivity, the Enterprise Pro Package is required. This package also offers 24-hour support response time and onboarding services.

Is hand tracking available for the XR-4 Fixed Focus?

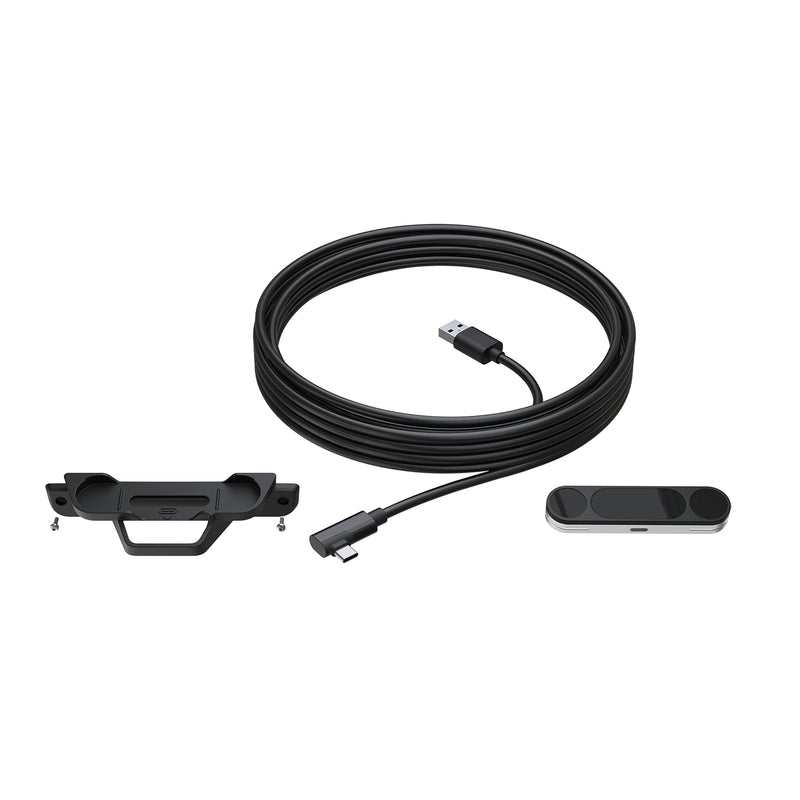

Yes, hand tracking can be added through the Ultraleap Hand Tracking kit, which includes a custom mount, setup instructions, and license handling.


    INTRODUCING

    THE XR-4 SERIES

    Breakthrough in Optical Design

    Breakthrough in Optical Design

    • Massive 50% increase in effective FOV

    • 28 Million pixels - over 20 % more than AVP

    • Aspheric variable resolution full-frame lenses for massive 120 x 105 FOV

    • Double the brightness and incredible color gamut

    BUY NOW

    Made for

    Superlative immersion

    Mixed Reality

    Mixed Reality

    Indistinguishable form natural sight

    • 20MP FF/AF cameras with up to 51PPD resolution

    • Dedicated ambient lighting reconstruction cameras for the most realistic fusion of physical and virtual ever achieved

    • World’s first gaze-driven auto focus camera system in XR-4 Focal Edition that mimics human vision

    BUY NOW
    Foveated rendering & camera streams

    Foveated rendering & camera streams

    Real-time Ray tracing powered by NVIDIA RTX 4090

    Need XR Expertise for Your Business?

    Need XR Expertise for Your Business?

    Our team of highly qualified experts can provide you with a free consultation to help you get started.

    Get XR Expertise

    Access and Upgrade two world’s highest computing power

    +

    Complete professionals compatibility

    COMPLETE PACKAGE

    For industrial use

    THE XR-4 Series

    Made for Professionals

    XR-4
    XR-4 Focal Edition

    (51 PDD pass-through with auto-focus)

    XR-4 Secure Edition

    (TAA compliance)

    Custom Solution

    Custom Solution

    For secure environments

    XR-4 Secure Edition

    Made for the highest government and enterprise level security requirements.

    Secure units are made in Finland, are TAA compliant and can be configured to be non-RF (have no radio components) and compatible with SteamVR™ Tracking.
