Xsens Ergo Live and Scalefit Industrial Athlete Software

Xsens Awinda Wireless Full-Body Motion Capture System

by xsens
Request a Quote

Contact for Pricing

Our team will respond within 1 business day with pricing and availability.

Return Policy
Shipping and delivery
Overview

Xsens Awinda is a flexible wireless full-body motion capture system with 17 MTw Awinda trackers mounted using adjustable straps and fitted shirts. It is designed for fast subject changes and dependable capture in studios, labs, clinics, workplaces, and classrooms.

Key features

  • 17 wireless body trackers plus support for a prop tracker
  • Up to 60 Hz full-body update rate
  • Up to 50 m wireless range with the Awinda Station
  • Approximately 12 hours of tracker battery life
  • 30 ms latency and magnetic-immunity processing

Compatibility

Use with Xsens Animate, Xsens Analyze, or Xsens Humanoid software according to the application. Finger tracking integrations are available separately.

What is included

Awinda system hardware, body attachment set, and case as configured by Xsens. Software is quoted separately unless explicitly included.

Ordering and configuration

This is a quote-only Xsens product. Knoxlabs will confirm system compatibility, license type, lead time, and the correct configuration before order placement.

Design Highlights

Ultra-small trackers

The ultra small trackers allow for rolls and stunts. The trackers are designed to withstand high impact.

Sportive design

Sportive looking motion capture suit with accompanying shorts.

On-body zippers

The zippers give easy access to all trackers for a very fast setup.

Specifications

Specifications

Max update rate։ 60 Hz
Wireless range։ 50 m
Battery life։ 6 hours
Wireless communication: Radio protocol (Awinda protocol)
Finger tracking: Full compatibility with Xsens Gloves by Manus
Hardware: 17 wireless sensors (plus 1 prop sensor)
Clothing: Full body strap set (this includes 3 t-shirts (sizes S, L, XXL) and a strap set)
Hardware synchronization: Included, via BNC connectors
Charging: Charging stations for Awinda sensors
Wireless datalink: Awinda station (1 per person)
Latency: 30 ms
On-body buffering: 30 min
Casing: Sturdy backpack
GNSS (GPS): No
On-Body Recording (OBR): No
Remote On-Body Recording (rOBR): No

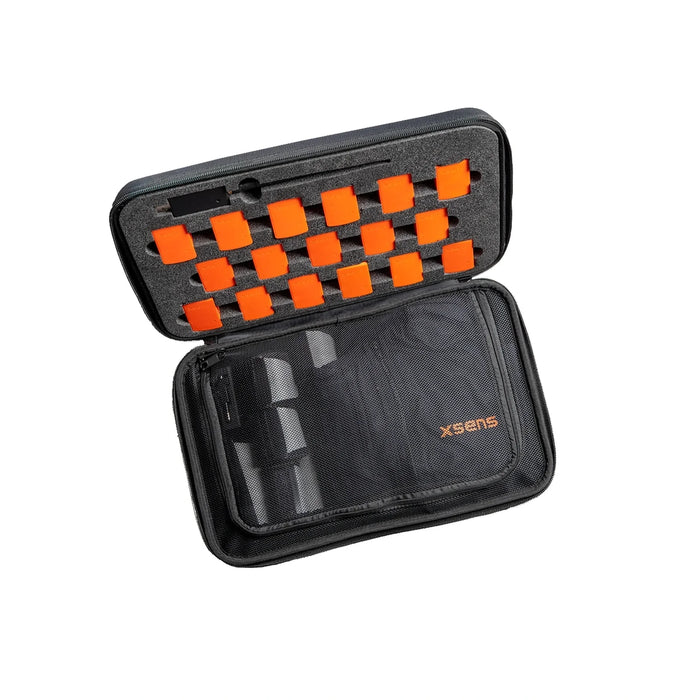

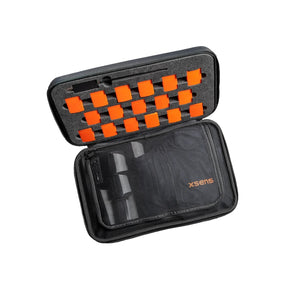

MVN Awinda neoprene case with contents

MVN Awinda neoprene case with contents

The MVN Awinda arrives in durable neoprene case with protective frame, which contains:
• 17(+1) Wireless Motion Trackers (MTw)
• 1 Awinda Station
• 2 Awinda Chargers
• MTw full body Velcro straps, including 3 shirts, headband, footpads, 2 pairs of gloves
• 1 Segmometer
• Quick Setup sheet
