Xsens MVN Awinda Starter - Wireless fullbody mocap system

Xsens MVN Awinda Starter - Wireless fullbody mocap system

by xsens
Request a Quote
Return Policy
Shipping and delivery
Ships within 10-15 days
Overview

Xsens MVN Awinda Starter is a full-body wireless mocap system, featuring 17 wireless sensors and adjustable straps for easy fitting to the body. It is highly portable, making it an ideal choice for motion capture in a range of environments. Combining ease of use and affordability, the system brings award-winning motion capture technology within reach. Utilize the capabilities of the MVN Awinda Starter through the use of MVN Animate (or MVN Analyze) and/or MVN Processing software. A perfect starting point for your motion capture journey.

See more below...

Applications
  • Educational Settings: A valuable tool for students and educators.
  • Group Dynamics: Perfect for understanding group interactions and movements.
  • Virtual YouTubing (VTubing): Live stream your animations with the maximum frame rate of 60 Hz.
  • In-home Motion Capture: Its portability makes it a perfect choice for mocap at home.
Features
  • Affordability Meets Quality: Get Xsens quality without breaking the bank.
  • Magnetic Immunity: Perform mocap in any environment without magnetic disturbances.
  • Fast & Accurate Motion Capture: Ensuring real-time and reliable data capture.
  • Swift Setup: Hassle-free sensor placement for a quick start.
  • Ideal for Low Dynamic Motions: Perfect for capturing subtle movements.
  • Use Anywhere: No specialized lab or environment required.
  • Live Streaming Capabilities: Ideal for VTubers and content creators.
Specifications
Feature Details
Update Rate Up to 60 Hz
Wireless Range 25 m
Battery Life 6 hours
Communication Radio protocol (Awinda protocol)
Receiver Dongle antenna (1 per person)
Sensors 17 wireless sensors
Charging USB cables for Awinda sensors, 6-port USB charger
Latency 30 ms
On-body buffering 30 seconds
Clothing Full body strap set (sizes S, L, & XL included)
Finger Tracking Compatible with various Xsens and Manus gloves
Hardware Synchronization Optional with additional Awinda station
Casing Neoprene shell case
In the Box
  • 17 x MTw Awinda Wireless Motion Tracker
  • 1 x Awinda Receiving Dongle
  • 1 x 6-Port USB Wall Charger
  • 6 x 3-way USB Charging Cables
  • 3 T-shirts + 1 x Full Body Strap Set
  • 1 x Neoprene Shell Case for MVN Awinda Starter



Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Specifications

Specifications

Max update rate։ 60 Hz
Wireless range։ 20 m
Battery life։ 6 hours
Wireless communication: Radio protocol (Awinda protocol)
Finger tracking: Full compatibility with Xsens Gloves by Manus
Hardware: 17 Wireless sensors
Clothing: Full body strap set (this includes 3 t-shirts (sizes S, L, XXL) and a strap set)
Hardware synchronization: Optional, with additional Awinda station
Charging: USB cables for Awinda sensors, plus a 6-port USB charger
Wireless datalink: Dongle antenna (1 per person)
Latency: 30 ms
On-body buffering: 30 min
Casing: Case
GNSS (GPS): No
On-Body Recording (OBR): No
Remote On-Body Recording (rOBR): No

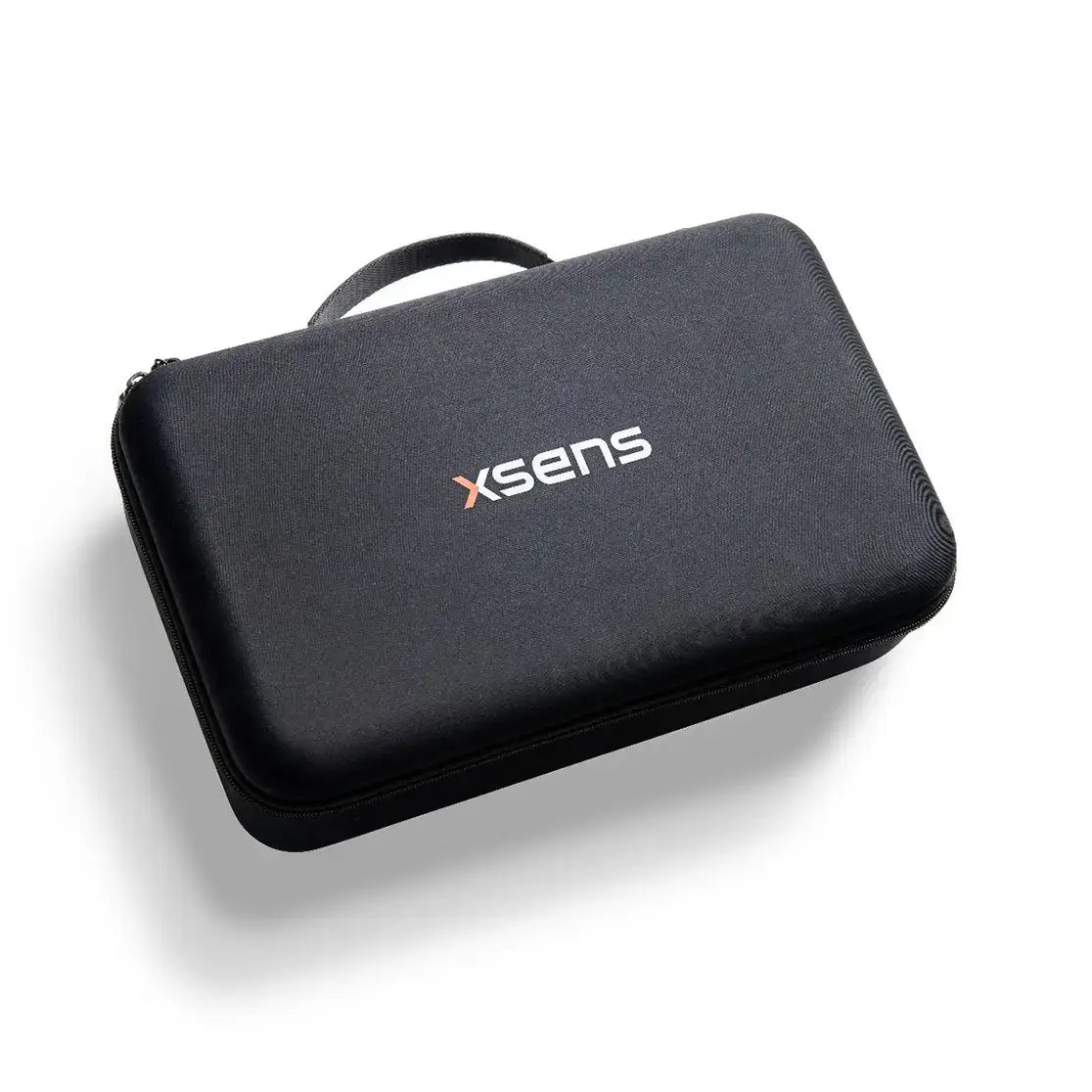

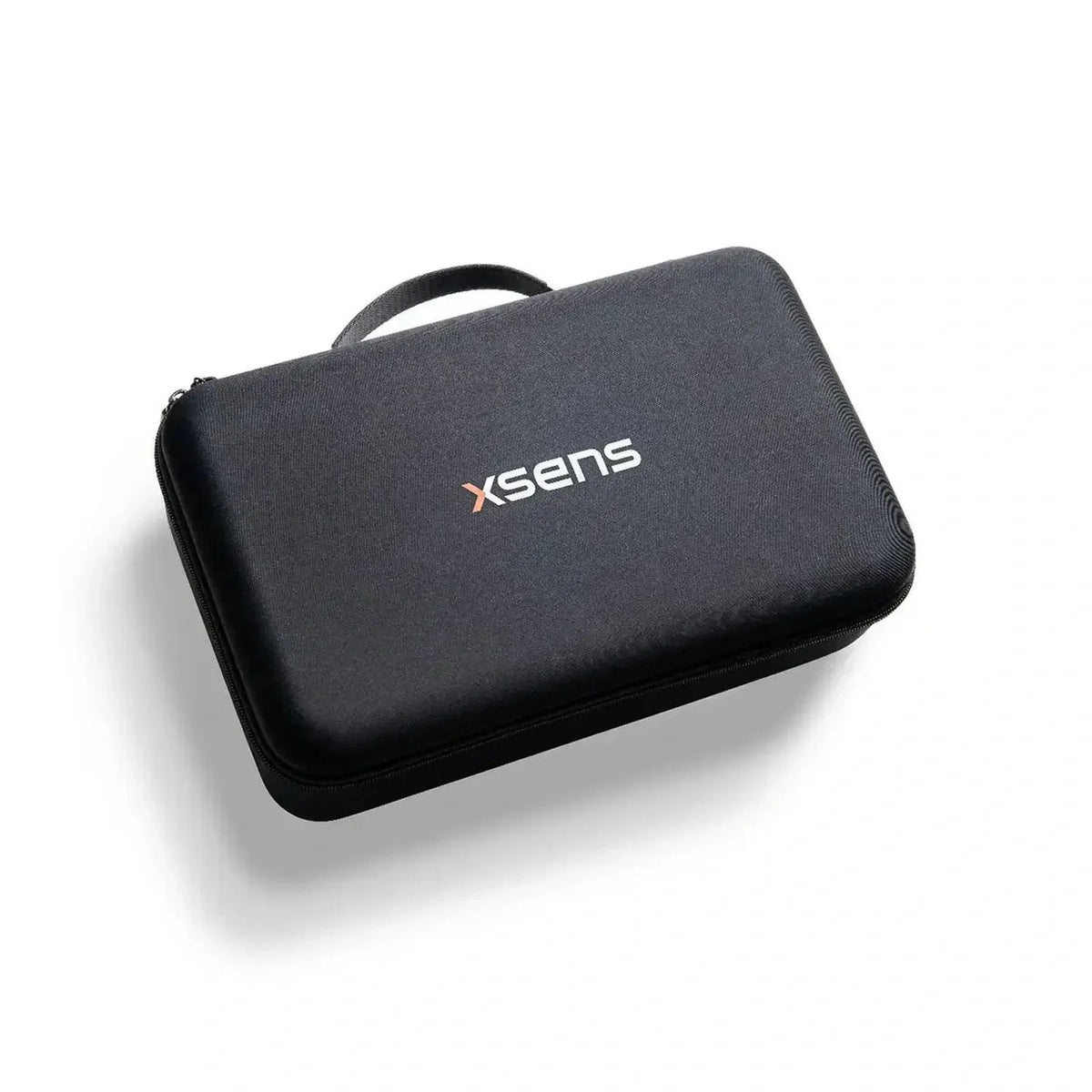

MVN Awinda starter neoprene case with contents

MVN Awinda starter neoprene case with contents

The MVN Awinda Starter arrives in durable neoprene shell case with protective frame, which contains:

• 17 Wireless Motion Trackers (MTw)
• 1 Awinda Dongle with Antenna
• 6 3-way USB charging cables
• 1 6port USB hub

Quick Setup sheet

You may also need

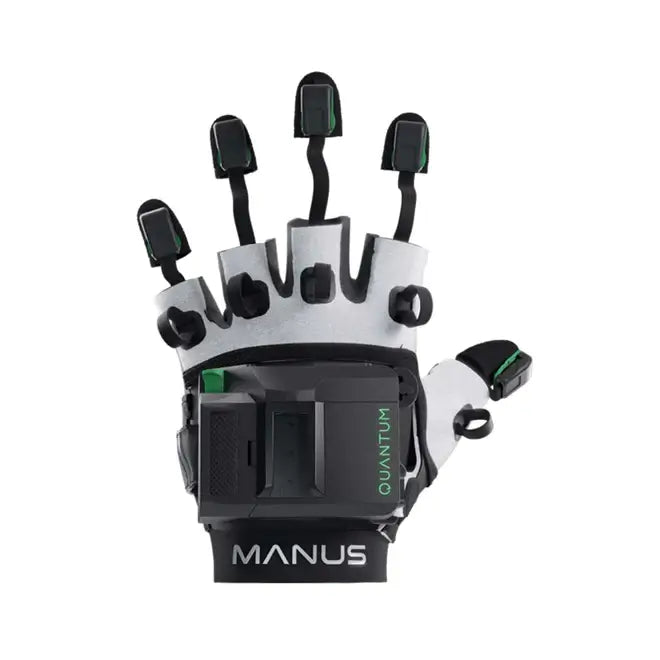

Manus Gloves for the Finger Tracking
