Lenovo ThinkReality A3 Smart Glasses | Knoxlabs XR

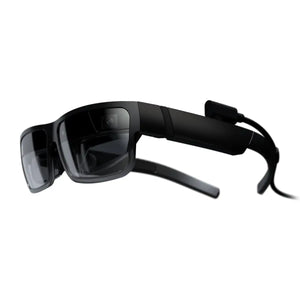

Lenovo ThinkReality A3 Smart Glasses

by Lenovo
$ 3,499.00 - $ 3,499.00
$ 3,499.00
$ 3,499.00 - $ 3,499.00
$ 3,499.00
Return Policy
Shipping and delivery
Ships within 10-15 days
Overview

Transform your company vision

Look beyond what’s in front of you with ThinkReality A3 PC Edition, our augmented reality smart glasses for the enterprise. Connect these comfortable, customizable glasses to a compatible* Windows laptop (ThinkPad P1 Gens 2, 3, 4; ThinkPad P15 Gen 1; ThinkPad P17 Gens 1, 2; ThinkPad P53; ThinkPad X1 Gen 4 and ThinkPad T15g Gens 1,2) to create and expand your workspace anywhere. Advance productivity and transform your work across the enterprise.
*ThinkReality A3 PC Edition works only with compatible ThinkPad products; please see Features and Tech Specs for details.

Features

Create a custom workspace anywhere
No matter where you’re working, ThinkReality A3 enables you to create and customize your workspace via augmented reality. Set up multiple virtual monitors at your kitchen table. View secure data in the middle of a busy coffee shop. Place the virtual display(s) in the perfect location, then tilt, swivel, and lock in place.

Find your perfect fit
At 130g / 0.3lbs, these glasses are comfortable and light. And they were designed for tool-free modularity, with simple-yet-secure nosepieces and ear-horn extensions that allow you to customize the fit. ThinkReality A3 even adapts to different use cases, based on what you want to view.

Your eyes will be as safe as your data
ThinkReality A3’s safety lenses provide eye protection compliant with (ANSI) Z87.1 standards. Swap out the front frames and lenses and choose appropriate tint levels and side shielding—while maintaining optimal ergonomics. You can also use prescription lenses mounted to the nosepiece for a single assembly, and then easily remove if someone else uses the same A3.

PC compatibility
The multimonitor capability of the ThinkReality A3 works not only with high-performance PCs with multithreaded processors and dedicated graphics, but also with mainstream-use computers that meet the requirements detailed in the Tech Specs.

Specs

Processor: Qualcomm XR-1 SmartViewer
Resolution: 1080p per eye
Brightness: 200 nits
Weight: 130g / 0.3 lbs
Camera: 8MP RGB
Audio: 3 noise-suppressing microphones, Stereo speakers
Connectivity: USB-C 3.2 Gen 1, DisplayPort 1.4
Software Features: Head / gaze tracking, High-bandwidth digital content protection (HDCP) for digital rights management (DRM)

In the box
  • ThinkReality A3 Glasses
  • Temples/nose bridges (3 sizes)
  • Prescription insert template
  • USB Cable
Works with

Compatible Smartphone: Moto edge+

Compatibility Requirements for Systems with Discrete Graphics

  • Maximum Virtual Displays: 5
  • CPU: Intel® Core™ i5 or higher
  • GPU: NVIIDA® Quadro T1000 or higher, or NVIDIA® GeForce RTX™ 3000 or higher
  • Memory: 8GB dual channel
  • Windows 10, version 20H2 or later
  • Ports: USB-C 3.2 Gen 1 with DisplayPort 1.2
  • Graphics Drivers: Up to the latest NVIDIA®

Compatibility Requirements for Systems with Integrated Graphics

  • Maximum Virtual Displays: 3
  • CPU: 10th Gen Intel® Core™ i5 or higher, or AMD Ryzen R7 PRO
  • GPU: NVIIDA® Quadro T1000 or higher, or NVIDIA® GeForce RTX™ 3000 or higher
  • Memory: 8GB dual channel
  • Windows OS: Windows 11 version 21H2 or later
  • Ports: USB-C 3.2 Gen 1 with DisplayPort 1.2
  • Graphics Drivers: Up to the latest NVIDIA®

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

VIVE Focus Vision Full Specifications

Display
  • Type: Dual LCD panels
  • Resolution: 2448 x 2448 pixels per eye (4896 x 2448 combined)
  • Refresh Rate: 90 Hz
  • Field of View (FOV): Up to 120°
Optics & Tracking
  • Auto-IPD Adjustment: Automatic interpupillary distance (57mm to 72mm)
  • Eye Tracking: 120 Hz gaze data output frequency, 0.5° to 1.1° accuracy, 5-point calibration, heat mapping & foveated rendering
  • Hand Tracking: 26-point hand tracking with infrared floodlight, low-light support
  • Inside-Out Tracking: 4 tracking cameras, sub-millimeter accuracy, no external sensors
  • Mixed Reality Passthrough: Stereo color passthrough, depth sensor for scene understanding
Processor Qualcomm® Snapdragon™ XR2 (Gen 1)
Memory & Storage
  • RAM: 12GB LPDDR5
  • Internal Storage: 128GB ROM
  • Expandable Storage: Up to 2TB via microSD card slot
Battery
  • Hot-swappable, removable battery
  • Battery Life: Up to 2 hours of continuous use
  • Charging: 50% charge in 30 minutes with 30W adapter
  • Hot-Swap Feature: Built-in backup battery for 20 minutes of power during swap
Audio
  • Speakers: Dual-driver, open-back with 3D spatial audio
  • Audio Jack: 3.5mm headphone jack
  • Microphones: Dual microphones with noise and echo cancellation
Connectivity
  • Wi-Fi 6, Wi-Fi 6E (2.4GHz, 5GHz, 6GHz)
  • Bluetooth 5.2 with BLE
  • Ports: 1 x USB 3.2 Gen 1 Type-C, 1 x USB-C with DisplayPort support
Sensors
  • 4 tracking cameras
  • 2 high-resolution passthrough cameras
  • Depth sensor, eye-tracking cameras, G-sensor, gyroscope, proximity sensor, infrared floodlight
Ergonomics
  • Weight: 615g
  • Materials: Magnesium alloy frame, reinforced for durability
  • Cushions: Magnetically attached, swappable face and rear cushions
  • Adjustment Mechanism: Rear dial, quick-release button, top strap
  • Glasses-Friendly: 150mm wide facial interface
  • Cooling System: Active cooling with 30% more air intake
Controllers
  • 6DoF inside-out tracking
  • Sensors: Hall sensors, capacitive sensors, G-sensor, gyroscope
  • Inputs: Grip button, analog trigger, joystick, A/B and X/Y buttons, system/menu buttons
  • Battery Life: Up to 15 hours (USB-C charging)
Compatible Platforms
  • VIVEport Platform: Access to over 1000 VR apps
  • PC VR Support: Compatible with PC VR via DisplayPort
  • Compatible Accessories: VIVE Wrist Trackers, VIVE Face Tracker, expandable storage via microSD
  • VIVERSE: Cross-platform collaboration (requires additional software)
Supported Use Cases
  • Play Area Size: Supports room-scale, seated, and standing VR
  • Room-Scale Tracking: Up to 10 x 10 meters
In the Box
  • VIVE Focus Vision Headset
  • Face Cushion & Rear Cushion
  • Controllers (Left and Right)
  • Hot-Swappable Battery
  • Top Strap
  • USB-C Cable
  • 30W AC Adapter
  • Splitter Cable for Charging
  • Lens Cleaning Cloth
  • Quick-Start Guide (QR Code)
  • Safety Guide
  • Warranty Card
  • Size Reference Card (for eyeglasses)
PC VR Minimum Requirements
  • Processor: Intel® Core™ i5-4590 or AMD Ryzen™ 5 1500X or better
  • GPU: NVIDIA GTX 1060 6GB or AMD Radeon RX 580 or better
  • Memory: 8GB RAM or more
  • USB Ports: 1 x USB 3.0
  • Operating System: Windows® 10 or 11
  • Ethernet Connection: Required for Wi-Fi streaming via PC
  • USB Cable: USB 3.0 Type-C recommended
  • Wireless Router: Wi-Fi 802.11ac or Wi-Fi 6/6E
VIVE Wired Streaming Kit for VIVE Focus Vision | DisplayPort mode compatible

VIVE Wired Streaming Kit for VIVE Focus Vision | DisplayPort mode compatible

Pre-order
$ 149.00 - $ 149.00
$ 149.00
$ 149.00 - $ 149.00
$ 149.00

Upgrade PC VR with the VIVE Wired Streaming Kit for seamless DisplayPort mode compatibility on the VIVE Focus Vision. Experience sharper visuals, reduced latency, and improved performance by connecting your headset directly to a PC. Ideal for high-fidelity gaming and immersive experiences.

  • Full 5K resolution support for stunning clarity
  • Low-latency connection for smooth, responsive gameplay
  • Easy setup for seamless switching between standalone and PC VR
