Dual-arm robotics platform

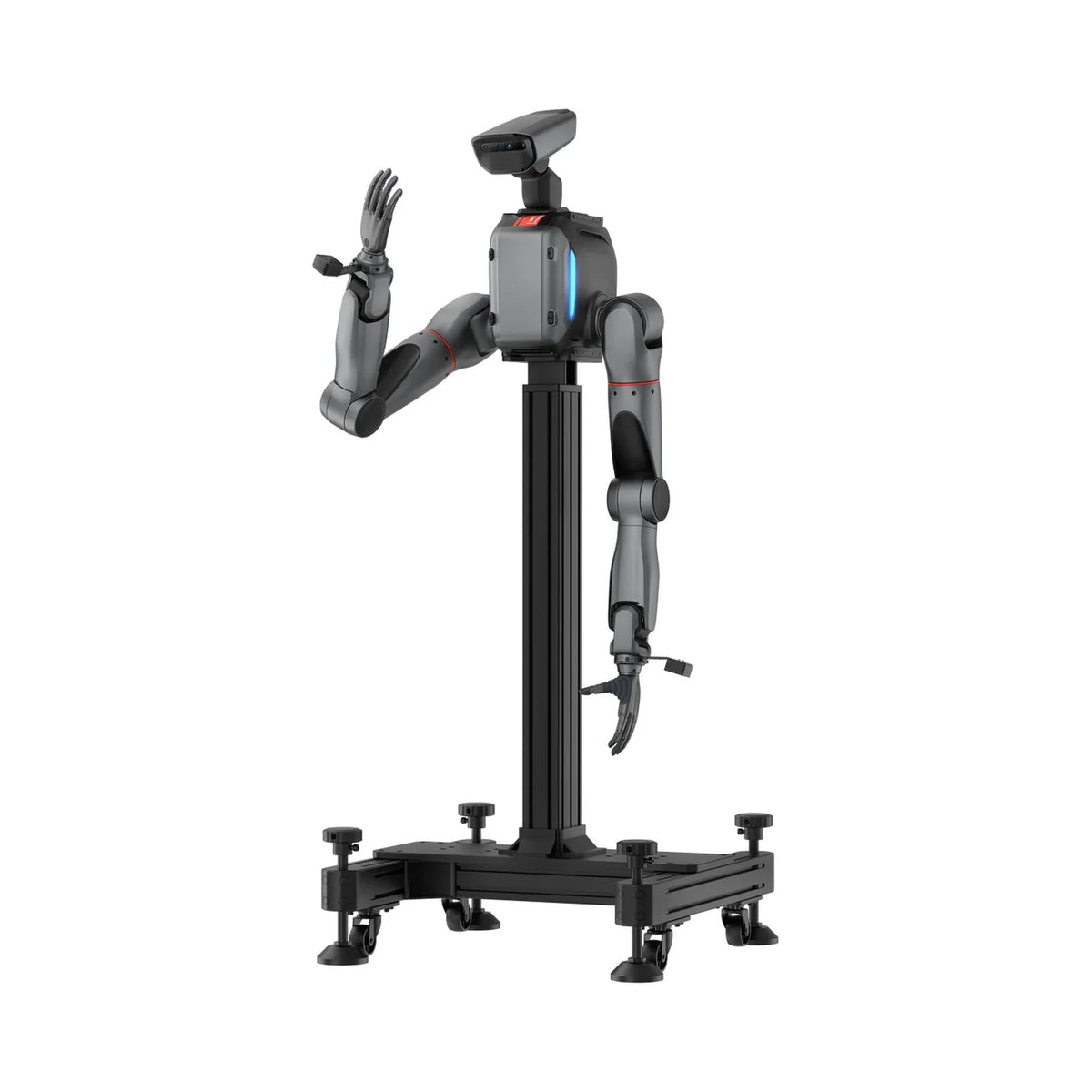

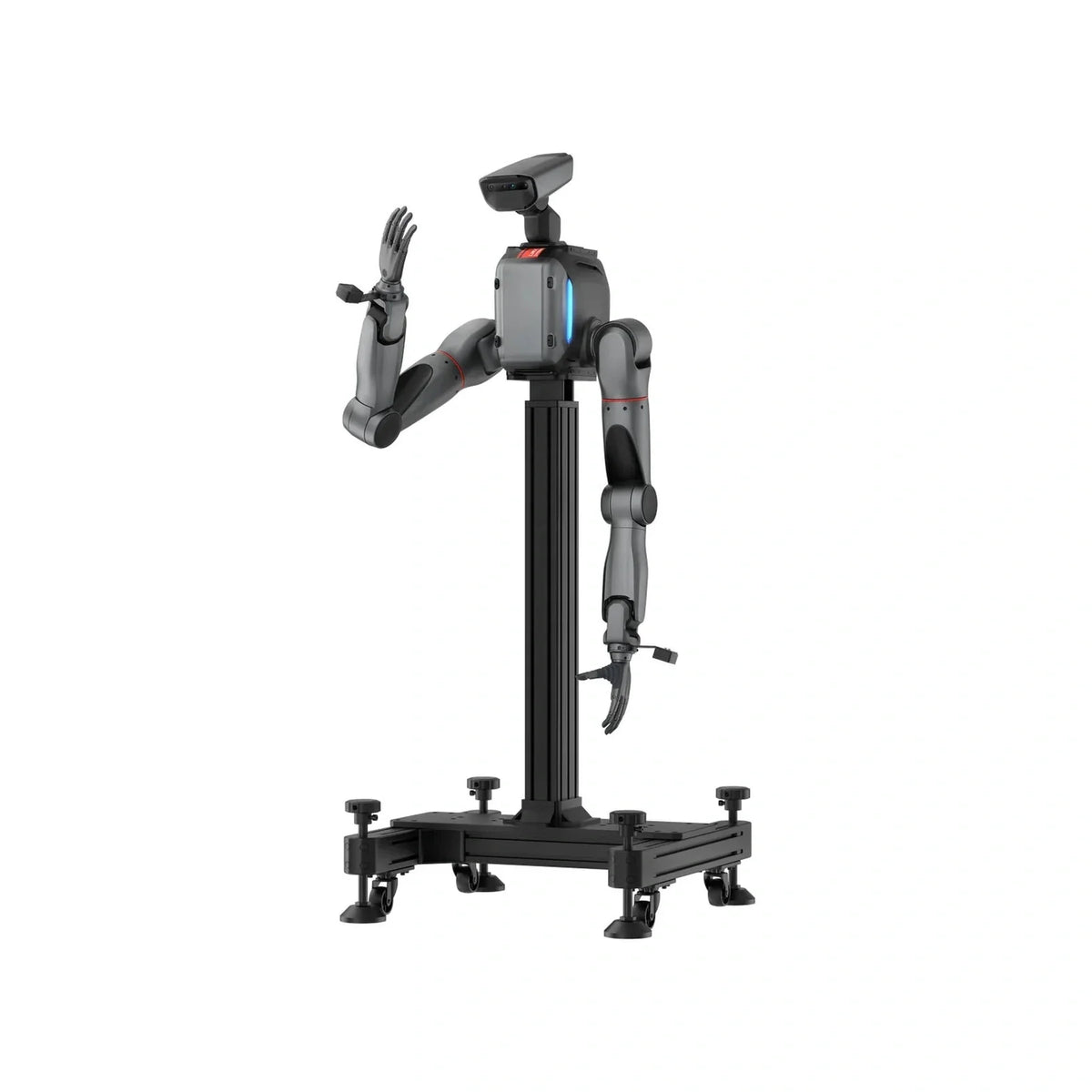

LimX TRON 2 Dual-Arm Robot - EDU Edition
A stationary dual-arm TRON 2 configuration for manipulation research, dexterous-hand development, teleoperation, lab automation, and embodied-AI data collection.
Available as: Stationary dual-arm robot · Manipulation platform
Priced per configuration. Freight and customs are quoted separately.
Related Robotics Products
Contact for pricing
This platform is configured and quoted to your requirements. Freight, customs, and integration scope are confirmed before order.
- 100% deposit required under current reseller terms
- Freight and customs quoted separately
- Third-party hand and teleoperation integrations require validation
🛠
Deployment Expertise
XR & robotics specialists on staff
⚙
Integration Support
SDK, ROS & simulator guidance
🎧
Enterprise Support
Hardware, software & deployment help
🌐
Global Fulfillment
Freight & customs coordinated
Spec Highlights
- Two 7-DoF arms
- Maximum 5 kg end-effector load per arm; 3 kg extended
- Up to 5 m/s end-effector speed
- 36 m/s² maximum acceleration
- ±0.5 mm repeat positioning accuracy
- Published 100 ms teleoperation delay
Technical Specifications
Mechanical, compute, power, SDK, and interface details for research and deployment.
Mechanical
- Arms
- 2
- Single arm dof
- 7
- Max end effector load per arm kg
- 5
- Extended load per arm kg
- 3
- Max end effector speed m s
- 5
- Max end effector acceleration m s2
- 36
- Repeat positioning accuracy mm
- ±0.5
- Teleoperation delay ms
- 100
Compute & Sensors
- Development compute
- Intel Core Ultra module option
- Storage
- 2 TB on development module
- Sensors
- waist RGBD camera, IMU, head RGBD camera, wrist RGBD cameras
Power & Battery
- Battery voltage v
- 46.8
- Battery capacity ah
- 9
- Max battery power w
- 2800
- Replaceable battery
- true
Software & Interfaces
- SDK languages
- Python, C++
- Operating systems
- Linux, Ubuntu 20.04 reference environment, Windows low-level SDK availability
- Middleware & frameworks
- ROS 1, ROS 2, WebSocket JSON API
- Simulators
- NVIDIA Isaac Sim, MuJoCo, Gazebo
- Communication interfaces
- Ethernet, USB 3.0, EtherCAT, RS485, CAN FD reported at end-effector; details pending
- Power interfaces
- 12V output, 24V output, 48V output, External power input
Product details
Overview
A stationary dual-arm TRON 2 configuration for manipulation research, teleoperation, dexterous-hand experimentation, lab automation, and embodied-AI data collection.
- Two 7-DoF robotic arms
- Up to 5 kg maximum end-effector load per arm; 3 kg in extended configurations
- Maximum end-effector speed up to 5 m/s
- Repeat positioning accuracy rated at ±0.5 mm
- Supports Python, C++, ROS 1, ROS 2, SDK, and simulation workflows
Integration note: LimX has tested BrainCo hands. Tesollo, MANUS, SenseGlove, and other third-party integrations require configuration-specific engineering and validation.
Purchase note: Freight, customs, lead time, training, and integration requirements are confirmed during quotation. A 100% deposit is required under the current reseller terms.
